Heavy duty cantilever racking
System designed for the storage of long loads of different lengths, adaptable to various size and weights.
Advantages
- Suitable for long loads of varying lengths, weight and depth.
- Easy assembly.
- High resistance.
Know-How

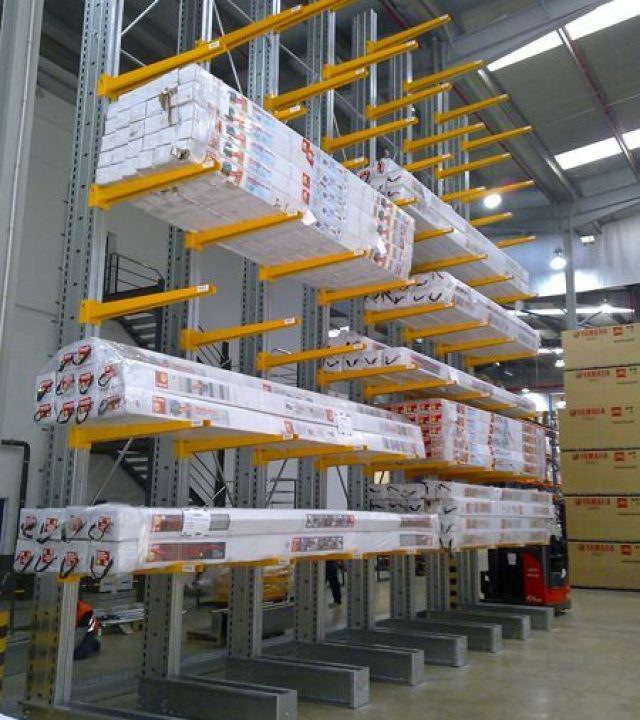

The system consists of vertical columns embedded in bases or feet that are responsible for transmitting forces to the slab or floor of the warehouse.
On the vertical column are fixed the arms which can be of different lengths depending on the characteristics of the goods to be stored.
It can be arranged as many bays in the longitudinal direction as needed to accommodate load units (modular construction).
The components of heavy duty cantilever racking, depending on the specification of the loading units, are made of hot rolled profiles.
Depending on the specification of the installation, vertical bracing may be required.
At the arm ends, end stops can be installed to prevent accidental dropping of load units.
